The production method of decorative lamp string parallel line structure

Sep. 21, 2019

Share

The production method of decorative lamp string parallel line structure shared by outdoor string light set supplier.

The utility model relates to an improved design of a connecting line in a connecting line structure of a decorative lamp string.

Background technology:

In the light string of adornment lamp at present in the market, the lamp string that USES line is not few also, because the lamp string length that joins is longer and longer, cause weight to also be heavier and heavier, often easy to cause the trouble of broken line or broken conduction and power off; In addition, the modeling lamp on the market often needs to prepare a special three-dimensional or planar modeling frame, with bundling, binding, sticking, nail and other ways to cooperate to form a model, inconvenient to change the model, is not the ideal structure, hinder the development of product efficacy and reduce the practicability of the product, it is necessary to improve.

Technical implementation elements:

The purpose of the utility model is to provide a series and parallel structure of decorative lamp which is convenient to replace the model.

In order to achieve the above purposes, the solution of the utility model is as follows:

A decorative light string and line structure, mainly two lines, three lines, four lines and five lines in any one of the mode, the pattern of the parallel wire used transverse a column configuration or horizontal wavy configuration

The decorative lamp string parallel wire structure, two parallel wire mode is between two wires through the adhesive film connection part join into one, in addition to strengthening the tensile strength of the wire, through the design of the connection part can let consumers use nail pin through the connection part will be the lamp string positioning in the modeling frame, and not hurt the wire.

The decorative lamp string parallel wire structure, the three parallel wire mode is that the intermediate wire is set as a plastic line, the core conductive body part is a plastic wire that can be bent at will to finalize the design, so that three wire pairs are listed as horizontal row, forming into one.

outdoor string light set supplier

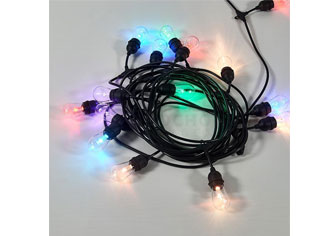

OUTDOOR COMMERCIAL WEATHERPROOF STRING LIGHT

The decorative lamp string parallel wire structure, the three-parallel wire mode is that the middle wire is set as the tension resistance wire, the core conductive body part is the non-conductive wire with high tension resistance, so that the three wire pairs are listed as horizontal row, forming into one.

The decorative lamp string parallel line structure, the four parallel line mode is the four wires in two phases and listed as horizontal row, forming into one; Two of the wires form a load line of a series or parallel loop, and the other group of wires forms an independent circuit circuit, and the tail socket of the lamp string is added to provide an independent power supply, so that another lamp string is added and inserted to extend the length of the lamp string.

The decorative light string parallel line structure, the five-parallel line mode is that all or part of the conductor in the middle position is a plastic line, so that the five-parallel line has the lamp string effect of three-parallel line and four-parallel line at the same time.

The decorative lamp string and line structure, the plastic line part formed in the decorative lamp string, can also have conductive effect when appropriate.

The decorative lamp string parallel line structure, the four parallel line mode is the four wires in two phases and listed as horizontal row, forming into one; The three wires form a loop load line first in series and then in parallel, so that the circuit load and the tail socket of the light string are added to provide an independent power supply, so that another light string is added to extend the length of the light string, and the other wire forms an independent plastic line, so that the four-wire configuration can still achieve the purpose of arbitrary plastic.

In the composition design of the combined wire, the utility model ingeniously integrates the wire with tensile strength or plasticity wire and the insulated covering plastic molding, and with the combined wire of the new design, the combined wire lamp string can be arranged more flexibly in the use and shape change, so as to avoid the trouble of preparing more molding frames.
